Why fuel cell cars don't work - part 2

Door mux op donderdag 26 februari 2015 22:39 - Reacties (36)
Categorie: -, Views: 17.990

This is the second part of my blog series about hydrogen fuel cell cars, and why I think they don't work. If you haven't read the first part, I highly recommend it as it lays the foundations for understanding what exactly constitutes a fuel cell vehicle (FCV) and how it is different from battery electric vehicles (BEVs). Today I will talk about production, storage and transportation of hydrogen.

This is a continuation of a blog series, here is Part 1. If you're done reading this part, I've also written Part 3.

This is an extremely long, in-depth blog series, so I'll start by giving you a summary. This summary will exist at the top of every part of this series. If you're interested in the technical details, please do read on and make sure to come back for the next parts.

First of all, HFC cars are perceived to be a good bridge between fossil fuels and full electric because:
  • You can still fill up like you do with a gasoline or diesel powered car
  • The mileage you can get out of hydrogen is perceived to be more adequate than what you get from batteries
  • Hydrogen fuel cells are thought not to wear out as quickly as batteries (or conversely, batteries are thought to wear out very quickly)
  • Hydrogen as a fuel is perceived to be a relatively small infrastructural change from gasoline and diesel
  • Hydrogen is perceived as a cleaner solution than gasoline, diesel or natural gas
In reality,
  • You cannot fill up like you do with gasoline or diesel. It is actually pretty ridiculous how hard it is to fill up a HFC powered car
  • You won't even go 100 miles on current tech hydrogen tanks that are still safe to carry around in a car
  • Fuel cells wear out crazy fast and are hard to regenerate
  • Hydrogen as a fuel is incredibly hard to make and distribute with acceptably low losses
Additionally,
  • Hydrogen fuel cells have bad theoretical and practical efficiency
  • Hydrogen storage is inefficient, energetically, volumetrically and with respect to weight
  • HFCs require a shit ton of supporting systems, making them much more complicated and prone to failure than combustion or electric engines
  • There is no infrastructure for distributing or even making hydrogen in large quantities. There won't be for at least 20 or 30 years, even if we start building it like crazy today.
  • Hydrogen is actually pretty hard to make. It has a horrible well-to-wheel efficiency as a result.
  • Easy ways to get large quantities of hydrogen are not 'cleaner' than gasoline.
  • Efficient HFCs have very slow response times, meaning you again need additional systems to store energy for accelerating
  • Even though a HFC-powered car is essentially an electric car, you get none of the benefits like filling it up with your own power source, using it as a smart grid buffer, regenerating energy during braking, etc.
  • Battery electric cars will always be better in every way given the speed of technological developments past, present and future
http://tweakers.net/ext/f/tzkHPO7no9Z9UQ2oXsVdRAPX/full.jpg
All of this is written from the perspective of somebody who helped make these hydrogen-powered racing karts happen. You have to admit, that looks super awesome!

The math behind gas compression

One of the biggest problems with hydrogen is that it is certainly a great fuel judging from energy-to-weight ratio, but it is also a very non-dense gas. The energy density of gasoline is about 32MJ/L, whereas uncompressed hydrogen only stores 0.013MJ/L. In other words, about a 2500-fold discrepancy in volumetric energy density. This can only mean one thing: we need to compress this down to fit it inside a car. Or any vehicle.


Compressing hydrogen is lossy and hard
I very briefly touched upon hydrogen compression being lossy and causing all kinds of temperature effects, but why? Well, compressing and decompressing a gas - any gas - doesn't come for free. You need to put in a considerable amount of energy.

Intuitively, you need to put in effort (work) to compress a gas. That should be obvious; it's not something that happens automatically. This energy you put in effectively gets converted into heat. We have formulas for this process, which is called adiabatic compression:

P(1- γ) x Tγ = constant

with γ = 1.4054 for hydrogen (Adiabatic index of hydrogen)

where P is pressure (in Pascal) and T is absolute temperature (in Kelvin). So if we take hydrogen at 1 bar (100kPa) and room temperature (298K), this constant value that pops out of the formula is 27.54. Now we increase the pressure to 200 bars, what is the resulting temperature?

Tγ = constant / (P(1-γ)) = 25105

This yields T = 1351K

That's scorchingly hot. Actually, it is so hot that you can't just say that we have compressed 200 liters of hydrogen into the space of 1 liter; gas at higher temperatures in a confined space will have a higher pressure. So to find how much gas is actually in there, we need to use another formula in the adiabatic process:

PVγ = constant

at 25 degrees let's say we have 200 liters or 0.2 cubic meters. The constant then becomes:

100 x 103 x 0.21.4054 = 10415

At the resulting pressure of 200 bar:

10415 / (20 x 106) = V1.4054, so V = 4.61 liters

That's much larger than 1/200th of the original volume. 4.61 times as much, in fact. The reason for this is, well, hot gas actually takes up more space than cold gas. In order to 'fit' this amount of hydrogen into a 1-liter tank at 200 bar, we need to actively cool the gas as it is pressurized. Otherwise it will go in the tank 'hot', cool off and actually be much less than 200 liters unpressurized.

You can breathe now; you already survived 33% of the math in this blog post. Here is a really pretty 4K panoramic picture of the racing circuit in Aragon, Zaragoza where we raced in the summer of 2009 (click for 4K version).

http://tweakers.net/ext/f/nGflNfpnXXZmPuZWgtfrCVZB/full.jpg

Now to the energy issue: We know that 200 liters of hydrogen are about 16.53 grams and the specific heat (i.e. the amount of energy you need to put in it to get it to heat up by 1 K) is 14310 J/kgK, so this equates to 250kJ of heat energy we put into the system. Now comes the interesting part: that 200 liters of hydrogen initially contained 1.6MJ of energy. Just compressing it to 200 bars cost us 250kJ, which is 15.7% of the energy content of the hydrogen. Let this just sink in: just the act of compressing it requires a significant proportion of the energy actually contained in the hydrogen!

To make matters worse, when we decompress it inside a car to use it as an energy source, the exact same amount of energy needs to be added to the gas, otherwise it will enter the fuel cell way too cold and cause damage. This principle is how the superconducting magnets in nuclear magnetic resonance imaging (MRIs) are cooled. In a vehicle, we can use this cooling effect to our benefit though; because fuel cells are not that efficient, the ingoing cold hydrogen can be used to cool the stack or the waste heat from the fuel cell can be used to heat up the expanding gas. But this nevertheless poses a big problem with the total (well-to-wheel) efficiency of hydrogen. If you need to compress hydrogen more than once, for instance when you need to transport it with a tanker vehicle, then store it at a fill-up station, you are going to need a significant amount of additional energy.

We're just talking about compressing up to 200 bars, which is the limit for metal containers at the moment. If you would use composite (carbon fiber, etc.) or special lined steel containers, pressures of up to 700 bars are used. Again, realize that we are trying to put a 2500 times less dense fuel into our tank, we need to compress it as much as possible. This pressure is for instance used at the California quick-fill stations for the Honda FCX Clarity. At 700 bars, if we do the math, this compression energy loss amounts to 389kJ/L or 24.3%.

Just this compression energy loss isn't all. Three paragraphs ago i said that as you pressurize the gas it becomes hot and takes up more space. In order to fit inside a tank, you need to actively cool down the gas as it's pumped into the tank. Or, conversely, if you're transferring hydrogen from a high-pressure tank in a quick fill station to the lower-pressure tank inside a car, you need to continuously heat the gas, otherwise you risk overpressurizing as the gas heats up inside the tank to ambient temperatures. The compression and decompression cycles required for distribution make up a significant amount of the inefficiency in transporting hydrogen from place to place.

http://images.gizmag.com/hero/4334_280705110432.jpg

Also, with the pressures and precision involved, there is no way you can actually 'fill up' by yourself without a lot of technical assistance. A lot of engineering has gone into robotic hydrogen filling stations that make sure you don't risk blowback, leakages or freezing and/or burning your hands during the filling process. It's really a marvel of technology that (recently, since about 2008) Shell has been able to build these great human-operated filling stations using high tech filling nozzles. Talking about pressure...


Storing hydrogen is probably even harder
The central issue to this subchapter is the simple fact that hydrogen molecules are extremely tiny. So small, that they can fit through the holes between atoms and molecules of any solid material. Ever heard of gas-tight fittings? Not if you're talking about hydrogen. Every pipe, every tank, every container you make for storing hydrogen will slowly but surely leak hydrogen. Even the best materials will leak it pretty fast actually, and this of course has to do with the ginormous pressure differential between the outside world and the inside of the tank, as well as the need for hydrogen tanks to be somewhat portable, so wall thickness is bound to practical limits.

Leakage rates can be calculated with Fick's law of diffusion:

J = D x p / t

Where J [mol/m^2s] is the mass flux of hydrogen, D [m2/s] is the diffusivity coefficient, p [mol/m3] is the molar density difference over the wall and t [m] is the wall thickness. Hydrogen has a molar weight of about 2g/mol and volumetric density of 89 g/m3, which makes for about 44.5 mol/m3. For best case steel, the diffusivity coefficient of hydrogen through steel is about 10-9 [m2/s] at room temperature. This means that for a steel vessel with 1 square meter surface area, 1cm thick walls and 200 bar pressure difference, the diffusion rate is:

J = (1 x 10-9 x (200 x 44.5 / 0.01) = 0.00089 [mol/s].

This is about 75 mol/day or 0.15 kg/day - in other words, such a vessel would be empty in a month or so. Again, let this sink in for a minute: a 1-cm thick, 1 square meter area steel tank that weighs as much as a human (77.5kg) will leak hydrogen so fast that it's unusable as a fuel tank. But this is not the main issue (see below, there are kind of ways around this)

The diffusivity becomes a lot higher at higher temperatures too, climbing about 2 orders of magnitude to D=10^-5 at 1000K. Why is that relevant? Let's think about distribution for a second. Turbulence and friction causes the gases in large natural gas pipelines to heat up considerably. Also, to save on additional cooling costs and power, currently gas pipelines pipe out hot gas and let the pipes themselves do the cooling. This is not feasible for hydrogen, as it would diffuse out so quickly. Really, any plain steel vessel is not usable for hydrogen storage or transmission. Worse still, all eligible metals have similar, often worse (aluminum) diffusion coefficients. Metals are not a great choice for hydrogen containers.

http://upload.wikimedia.org/wikipedia/commons/8/8f/Trans-Alaska_Pipeline_System_Luca_Galuzzi_2005.jpg

So why do I dwell on steel so much, can't we use something like polymer linings (~1 order of magnitude better)? The thing is, steel really is the only affordable option for long-haul pipelines. We already have really good oil and gas infrastructure in place, trillions of dollars worth. It's the wet dream of futurists to reuse this for the hydrogen economy. This is why some universities are doing studies into the exact loss rates of steel pipelines, as well as ways to increase the gas flow so that the actual losses become insignificant as compared to the amount of gas that is transported (which of course leads to the heat problem again). Because even if such a pipeline leaks a couple kg/s of gas; if it transports thousands of kilograms per second, that is an acceptable loss. Natural gas pipelines also lose an appreciable amount (about 0.5%) during transportation in these pipelines.

But, this is not actually practically feasible at the moment because one of the biggest hurdles towards hydrogen pipe infrastructure is that...


Hydrogen embrittlement makes logistics even harder!
A big problem with pipelines is a phenomenon called Hydrogen Embrittlement; as hydrogen diffuses through the container material it occasionally forms bonds with the iron atoms, transforming the iron into a different molecular structure and in the process creating additional internal stresses and even different crystal structures with additional boundaries or dislocations. Over a long period of time this lowers the maximum elastic stress and thus toughness of the steel. Contrary to LNG or oil pipelines, hydrogen pipelines need to either be significantly overengineered or replaced every 5-10 years because of this reduction in strength.

Actually, hydrogen embrittlement is not just a problem for steel, although it is by far most pronounced in steel. Aluminum and other metals as well as some polymers are adversely affected by hydrogen seeping into the microstructure. As it turns out, hydrogen fairly easily falls apart into single hydrogen atoms. Atomic hydrogen, much like any atomized material, is very reactive and will force itself into the microstructure of any material over time.


So if steel isn't usable, how do we store hydrogen?
http://tweakers.net/ext/f/Aqx4cuvL7PEIbUKRILk8a1eb/full.jpg

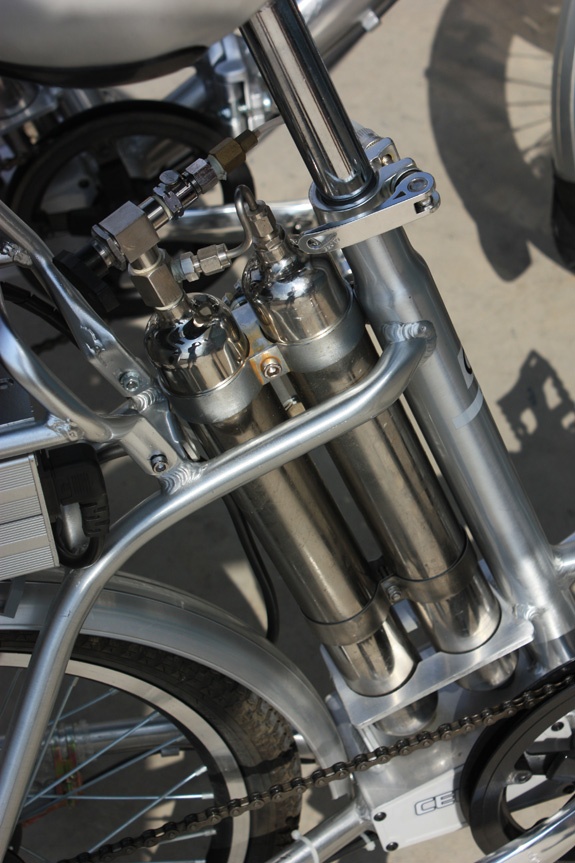

Hydrogen storage canisters on a hydrogen-powered folding bike

But that still leaves us with the question of how to store hydrogen in a car. Steel is not really a good option. Aluminium cartridges is how we did it at Formula Zero, but these also leaked measurably and only held about 100g of hydrogen. As it turns out, this is a fundamental problem. No materials exist with less than about 10^-9 diffusion rates, which would still mean your vessel is essentially empty after a month - or a year if you store it at lower pressures. This is even worse with more modern high-performance composite tanks that are much lighter than steel or aluminum for the same amount of storage, but have even worse leakage properties. So we have to look elsewhere.

Two options are in use right now. The first is to liquify hydrogen. Hydrogen boils at 20 K - very near absolute zero - so if you cool it down to below that temperature you can carry it around practically unpressurized in liquid form. This is how most long-term storage containers worked for many decades, like NASA's Space Shuttle. The downside to this is that you need really good thermal insulation as well as some way to keep refrigerating the hydrogen tank. This is, as you might imagine, really hard. Not necessarily because insulation and refrigeration is particularly difficult, but because you can't make the tank a closed, isolated chamber like a thermos. It needs an entry/exit point that can resist high pressure and very large temperature differentials, and that is almost only possible with ceramics and metals - which conduct heat way too well. So there has to be a constant power source attached to your car, or a large battery, that can make sure that the hydrogen doesn't boil off when you are not using your car. Worse still: if something goes wrong and your unattended car loses power, the hydrogen starts boiling, pressurizing the tank and causing an explosion. So for maximum security you need either a safety valve or a tank that can still withstand these super-high pressures. This is one of those fundamental problems that make hydrogen storage inherently unsafe, whereas gasoline and battery storage can be inherently safe.

The other method is a combination of pressure, adsorption and high-tech interior pressure vessel liners. Hydrogen in gaseous form has its molecules very far from each other; pushing them together to increase the density creates a high pressure. However, some materials like activated carbon and metal hydrides can form weak but relatively stable bonds with hydrogen, causing the hydrogen molecules to stick to the surface of the liner in a very compact fashion. You still need some pressure to keep the hydrogen adsorbed - and when you release the pressure (or heat the liner), the hydrogen removes itself from the surface again - but for the same density we are talking an order of magnitude lower pressures. The downside to this method is of course the fact that any adsorbant is pretty heavy, because hydrogen is such a small atom compared to all the others and activated carbon can only adsorb at most one hydrogen molecule per carbon atom. This makes current vehicle-class adsorption hydrogen tanks about the same weight as pressure tanks for the same amount of fuel. A couple hundred kilograms of tank to store 5kg of hydrogen.

http://world.honda.com/FuelCell/FCX/tank/images/09.gif
The pressure tank of a modern Honda FCX Clarity (2011+ models)

This is one of the reasons why the newest generation of Honda FCX Clarity still uses pressurized hydrogen gas tanks; at a pressure of about 350 bars.

Making hydrogen? Downright impossible

Now comes by far the most controversial part, and the one that I think gets most overlooked because it is not actually happening on a large scale at all yet. Making hydrogen is a very environmentally damaging process and although 100% clean methods exist, they will take too long to set up and are currently too expensive to make hydrogen cars affordable in the foreseeable future. Compare making hydrogen to making ethanol fuels; even though ethanol as a fuel is very 'clean' compared to other vehicle fuels, you need an unsustainable amount of cornfields to produce bioethanol. Or you need to extract it from oil, which defeats the purpose (and is less efficient and more polluting than just extracting gasoline and diesel from oil and using that).

Roughly the same problem exists with hydrogen production. There are very roughly speaking four major methods of hydrogen production:

Hydrogen as a by-product
At the moment, if you buy a hydrogen canister from Linde or DOW or some other chemical company, you get hydrogen that is most likely not actually produced with the intention of making hydrogen. Hydrogen is a common by-product from a bunch of chemical reactions used to make everyday chemicals; ammonia, nitrogen oxide, carbon dioxide for carbonation of drinks, alkali metal production, etc. etc. . Some continuous process chemical plants that make these substances are essentially already setup to produce hydrogen; at some point in the process there is an easy way to tap off some very pure hydrogen. For a while, this was actually very cheap to come by as supply was high (especially with the relatively large hydrogen flows in ammonia plants - a big component of fertilizer) and demand was low. The downside is of course that this isn't sustainable as a production method for a true hydrogen economy. Besides, the energy efficiency is very low if you really only look at the amount of hydrogen produced. Lastly, especially in the case of ammonia production, the source of the hydrogen is actually natural gas which means this process is always worse (energetically) than standard steam reforming (I'll get into that a couple subchapters down).

Hydrogen from electrolysis

This is an awesome video. Not relevant to the text, but worth viewing anyway

The big promise of hydrogen is electrolysis from water. It is very easy to do; just put two metal plates in water, add a little bit of salt to make the water conduct reasonably well, put a current through the plates and hey presto, you're producing oxygen and hydrogen from water. This is the exact reverse reaction from a hydrogen fuel cell. It's even so exact, that a perfect electolysis setup is exactly as efficient as a perfect (cold cathode) fuel cell - roughly 80%. In practice, of course, things get a lot harder.

Plain electrolysis as you might have done in high school is out of the question of course. Most plate materials oxidize within minutes, especially on the oxygen side. Efficiency is also really, really bad. This has a lot to do with the fact that it's very hard to move those ions around in water at a reasonable speed. Most of the energy you put into the water gets lost as ions formed at one electrode bounce their way through the water towards the other side (high effective internal resistance). This also limits the volumetric/gravimetric efficiency of such a setup.

Another big problem with electrolysis from water is, like in fuel cells, the effect of electrode poisoning. Any contaminants in the water will most certainly react with either the hydrogen or oxygen - or both - to eventually form a thin and slimy material on the electrodes, which further reduces the speed of electrolysis.

Don't worry too much though; these problems aren't something that really stops anyone from using electrolysis. People have found ways around this; by using various better electrode materials and catalysts (platinum group materials work best), higher temperatures, higher pressures and additives that make sure that any contaminants present go away from the electrodes to some other collection point. Electrolysis is a fairly well-understood process. We have been doing it for ages now.

There have even been developments to reduce or eliminate the required subsequent pressurization of the hydrogen, with fancy high-pressure electrolysis systems or by carrying the reaction components away in special high-pressure wicks. As we've calculated before, this can improve the total cycle efficiency by up to 25% at 700 bar. Unfortunately, as far as I know there has been close to zero development on this technology since I started being technically interested in fuel cells and the highest pressure HP electrolyzers still only operate at about 20-80 bar, negating most efficiency gains because of some inherent downsides to high pressure electrolysis (like the hydrogen and oxygen permeating through the proton exchange membrane, causing them to mix instead of stay neatly separated). Practical electrolyzers at the moment get about 25% efficiency for fuel cell grade hydrogen.

http://my.voyager.net/~jrrandall/BublGen.gif
Images like this simply don't work. Nope.

Still, it's very important to grasp that hydrogen from electrolysis isn't as clear-cut a solution for hydrogen production as it's sometimes portrayed. It is actually pretty expensive, not necessarily efficient and it is fairly preposterous to for instance claim (like I've seen many times) that you can 'essentially just put the current from an offshore wind turbine into the sea water and catch the bubbles'. That sounds awesome and if it were really that simple it would be a good production method (invisible power generation as viewed from land, can easily meet the demand, etc.). But you actually have to do extensive pre-treatment of the water before it can be electrolyzed, and the electrolysis doesn't 'just work' on any input, you need a big power conversion platform and hydrogen electrolysis plant as well - adding quite significant cost. This makes electrolysis typically by far the most expensive and resource-intensive method, though it's the cleanest and most sustainable truly scalable method in the end.

Hydrogen from natural gas
http://www.tokyo-gas.co.jp/techno/challenge/img/014-1_e.jpg
The methane gas reforming process

The most promising technique for generating hydrogen currently is steam reformed natural gas. If you heat up water and natural gas to almost pyrolysis temperatures (in excess of 1000K), the natural gas naturally reacts with the water to produce carbon dioxide and hydrogen gas. These gases have wildly different densities, so the mixture quickly stratifies and very pure hydrogen gas can be scooped off the top. With a controlled inflow of gas, water and a controlled removal of carbon dioxide and hydrogen, this process can be made into an extremely fast continuous reaction. This is helped by certain catalysts. Theoretically steam reforming of methane and other n-anes (ethane, propane, butane, etc.) can be done at acceptable speeds with about a refrigerator-sized machine. Because of the long start-up time (the machine needs to heat up before every use) it's not quite possible to put a steam reforming machine into a car, but it is certainly possible to use them at fuel stations. This eliminates the need for (leaky) hydrogen pipelines and storage tanks. From a practical point of view, steam reforming is awesome. The wikipedia article still speaks of the need for complicated carbon monoxide filtering, but this is a solved problem. Multiple companies have announced or are already selling these small-scale hydrogen plants. And even though we're probably past peak oil, there is still a crapton of methane gas in the earth's crust to help us move around for the next couple of decades.

So what's the downside? Well... obviously, it still outputs carbon dioxide. A lot of it, actually. Also, the gas still needs to be compressed. If we ignore the energy cost of pumping up, refining and transporting the natural gas, as well as startup energy cost of the machine, the best case cycle efficiency of steam reformed hydrogen looks a bit like this:
  • Steam reforming process: about 70% efficiency (see below)
  • Compression to 200 bar: 85% efficiency
  • Decompression into the fuel cell: 95% efficiency using decompression cooling for the fuel cell
  • Fuel cell efficiency: 60%
This makes for a total methane-to-fuel cell efficiency of 34%. At a currently typical 125Wh/km, this means we require about 369Wh/km from the natural gas. Natural gas produces 1 mole of CO2 per mole of gas, and one mole of gas contains 891kJ of energy, or 164Wh. In other words, per kilometer we produce 2.25 moles of CO2, or 99g. that is exactly the same as a compact petrol or diesel powered car. Environmentally, you win absolutely nothing with this approach. And this calculation is fairly positively biased; I'm ignoring most other sources of inefficiency in this chain, and I'm assuming a state of the art electrical drivetrain.

Also, methane is the best possible situation: methane contains 1 carbon atom for 4 hydrogen atoms. The less carbon, the better. Any other fuel contains relatively more carbon, and thus will yield worse CO2 emissions.

As for the efficiency of any chemical process, in general it's very easy to analyze this; you simply take the enthalpy of formation for all molecules on both sides of the reaction and subtract them from each other. For instance, if we take steam reforming:

CH4 + 2 H2O <=> CO2 + 4 H2

Note that this is the reduced version of the steam reforming process; in reality this is a two-step process with carbon monoxide being involved somewhere. Now, the enthalpy of formation for these molecules is:
  1. CH4 (gas): -74.87 kJ/mol
  2. H2O (gas): -241.818 kJ/mol
  3. CO2 (gas): -393.509 kJ/mol
  4. H2 (gas): 0kJ/mol
Doing the math, this yields a difference of 164.997 kJ/mol of CH4 converted into 4 moles of H2, or 29.5% more energy on the right hand side compared to the left side. This means the reaction is endothermic: you need to *add* energy to keep it going.

This is not necessarily the entire story, though; you can also look at it from the point of view of heating value. The HHV of methane is 889kJ/mol, and for hydrogen is 286kJ/mol. But, we make 4 moles of hydrogen for each mole of methane, which means that the actual usable energy - ignoring the fact that we need to heat up and cool down some water in the process - goes up! We extract 1144kJ worth of hydrogen fuel from just 889kJ worth of methane fuel. Of course, this energy needs to come from somewhere and this is exactly the reason why the reaction is endothermic. So far so good, right?

Well, the higher heating value isn't necessarily a good measure for the amount of actual energy you can recover from both methane and hydrogen gas. In practice, the lower heating value - which takes into account that you need to heat up and/or cool down the water consumed/produced by a reaction - is a better approximation of what you can actually expect to get. The lower heating value of natural gas and hydrogen are 801 and 242kJ/mol respectively, yielding about 121% actual usable fuel efficiency from this process, for 129.5% energy consumption - or a total theoretical maximum process efficiency of 93.4%.

This is roughly how you do these calculations. In practice, the reason for the much lower than theoretically possible efficiency of steam reforming is the fact that this is actually a two-step process. A lot of energy is lost in the carbon monoxide reaction, reducing the theoretical maximum to about 85%. I'll leave the math to this as an exercise to the reader.

http://tweakers.net/ext/f/MQk2vukjfj7EPdT4ZVGfa7Vn/full.jpg
A rough illustration of the effectiveness of hydrogen from the gas reforming process. I'd say this is NOT an effective way to win the race

Hydrogen from plant matter, coal and other heavy fuels
There are other ways to do steam reforming though, and another big possibility is to use more abundant fossil fuels as well as biofuels. But... if you've read the previous chapter already, you'll be asking: how is this better? Short answer: with heavier fuels we can do carbon stripping and carbon capture.

Carbon stripping is a slight modification to the steam reforming process. Methane is the ideal input to steam reforming, because it has relatively uncomplicated chemistry and it's 'easy' to control the process such that very little undesired compounds get created. When dealing with larger carbohydrates - for instance biodiesel typically has a mixture of molecules 12-20 carbon atoms in length. The different molecules have different optimum temperatures, pressures and partial pressures for steam reforming (or any chemical reaction, really). The solution? Break down complex hydrocarbons to methane, and then do steam reforming. This is called carbon stripping. In general, the chemical reaction is:

CnHm => n CH4

Of course, this doesn't always fit. Actually, it rarely fits. There are very few if any pure hydrocarbons larger than methane that have exactly 4 times as many hydrogen atoms as carbon atoms, so like in steam reforming, a bit of H2O is added on the left side to 'add' hydrogen in the mix, and unbalanced carbon is ejected as CO and CO2. The methane is then reprocessed in classic steam reforming.

This is a great process because most heavier hydrocarbons are incredibly rich in hydrogen; for both weight and volume, classic liquid fuels like gasoline and diesel have more hydrogen atoms than liquefied hydrogen by itself. Also, this allows for production of hydrogen from any hydrocarbon: coal, oil but short-cycle fuels as well, e.g. wood, waste ecological matter, even sewage. Of course, at some point you start to run into the issue of energy balance. As you decrease the amount of energy in the source matter, you have to add more and more energy to 'get the hydrogen out', until you actually have to add more energy than the heating value of the resulting hydrogen. This is also the answer for everybody who has been asking 'well, why don't you just steam reform pure water?'. Apart from the fact that it doesn't work chemically, it would cost much more energy to get hydrogen from water than other methods. By the way, steam reforming water into hydrogen would technically probably be pyrolysis? Not sure about that one. Maybe someone in the comments can help me out with that one.

Carbon stripping is a good way to get one unified fuel type (hydrogen) from any input fuel, and one of the big underlying lures of the hydrogen economy. Much like electricity, hydrogen is a big common denominator for all chemical energy sources. With steam reforming, we can make use of that fact. But, like with everything I have talked about before, the issue of efficiency is a big one. Carbon stripping is an energy intensive process that always yields fundamentally lower total process efficiency than just steam reforming from methane. To the point where at the moment, no hydrogen producer can beat the efficiency of a well-tuned Atkinson cycle internal combustion energy just in fuel to hydrogen conversion. In other words: even just production of hydrogen in this way is - at least with current technology - less efficient than running cars directly on gasoline or diesel. Also, the carbon emission argument still stands, but with the use of short-cycle fuels (plant matter that absorbs the same amount of carbon from the atmosphere as it grows) this may be said to be a moot point.

And then there is Carbon capture. Carbon capture in general means that you don't release CO2 emissions into the air, but you find some other place for it. For instance pressurizing it into empty gas or oil wells, using it to grow plants under a very carbon rich atmosphere or using it directly for other chemical processes. Of course this can be done for any process that generates gaseous carbon emissions, but it is especially well-suited to large stationary plants. It wouldn't be feasible to add a big exhaust gas bag to the tailpipe of your car. Economies of scale and the ability to position a hydrogen production plant right on top of a suitable carbon capture location make this an attractive option. It is quite expensive though, and the cost is one of the big reasons for the failure to find investors for two big carbon capture projects in the Rotterdam and Delfzijl.

But what about bacteria? Algae? I've read so much about that recently!
That's right, Jay.*

Conclusions and next up...!

http://tweakers.net/ext/f/a50ZCrefYlyE0a0XzyDWh2Pi/full.jpg

In part one we looked at how fuel cell vehicles work, in this part we've looked at a lot of the math behind logistics of hydrogen. By now it should be clear that hydrogen is a very complicated fuel to use for vehicles and even if we would like to use it on a large scale, it would require a complete retooling of our existing infrastructure. But there are other ways around all of this. In the next part I will touch upon alternative fuels for fuel cells, alternative fuel cell types and alternative ways of using hydrogen.

Do read on in part 3 of this blog series

*I'm being quite dismissive here, mostly because yes: these methods do exist in laboratories but also no: these methods won't be available in a any kind of short term and have very little backing. Most of what you hear about them in media is just a cry for attention and money to develop these fabrication methods more. Therefore, I'm obviously not in a position to critique or analyze them, but I also feel like it's doing them a disservice to put them on the same level as established, scalable methods of hydrogen production

Volgende: Mmmm, lekker eten! 03-'15 Mmmm, lekker eten!
Volgende: Why fuel cell cars don't work - part 1 02-'15 Why fuel cell cars don't work - part 1

Reacties


Door Tweakers user -RetroX-, vrijdag 27 februari 2015 08:10

Awesome post, great explanation.

Door Tweakers user TIGER79, vrijdag 27 februari 2015 08:22

I was wondering though why you don't mention hydrogen production from nuclear power plants... They can't be turned down during the night-cycle, when the power requirements from the infrastructure are at their very lowest, thus actually losing a lot of power because it also is not stored... That would be the perfect moment to actually produce hydrogen, you might also see it as a form of storage for the produced energy which would otherwise simply be lost....
No materials exist with less than about 10^-9 diffusion rates, which would still mean your vessel is essentially empty after a month - or a year if you store it at lower pressures
Actually this doesnt have to be an issue at all, it al depends on how fast it is being used up, you can control the "flow" of hydrogen into the storage units... For the car part : storing a full hydrogen tank for a week to a month probably would be enough for like 95% of common usage, I mean noone actually keeps a full tank of gasoline for a whole month...

Door Tweakers user mvdam, vrijdag 27 februari 2015 09:12

TIGER79 schreef op vrijdag 27 februari 2015 @ 08:22:

Actually this doesnt have to be an issue at all, it al depends on how fast it is being used up, you can control the "flow" of hydrogen into the storage units... For the car part : storing a full hydrogen tank for a week to a month probably would be enough for like 95% of common usage, I mean noone actually keeps a full tank of gasoline for a whole month...
Well i think it is an issue, at my parents place we have 3 cars, one for me, mom, and dad. My mom's car easily does more than a month on a gas tank, and my car has not had a new tank of gas between the 1st of august and the beginning of january....

The good thing about gas is that it stays in your tank. And in the case that you run out, you can just get a jerrycan and fill it up, or in the case of a battery powered electric car you can just plug it in, or keep it plugged in while not using it.
So if you go on a holiday for lets say 3 weeks (which is not uncommon) and leave your hydrogen car parked at home. You might come home to a empty car, and no easy way to refuel it.

Door Tweakers user mux, vrijdag 27 februari 2015 10:07

TIGER79 schreef op vrijdag 27 februari 2015 @ 08:22:
Actually this doesnt have to be an issue at all, it al depends on how fast it is being used up, you can control the "flow" of hydrogen into the storage units... For the car part : storing a full hydrogen tank for a week to a month probably would be enough for like 95% of common usage, I mean noone actually keeps a full tank of gasoline for a whole month...
The average utilization of cars is less than 4%, the average time between fill-ups is 41 days. Maybe not for long-commute cars, but there are many more cars in ownership than just daily commuters. If we want to do a one-to-one replacement of gasoline cars with hydrogen fuel cell cars, we need to have at least similar tank performance.

Same goes for the refinement cycle. The time between hydrogen production at some production plant and actual fill-up is at least days. It is just not acceptable to have tens of percents of energy loss in this circuit.
I was wondering though why you don't mention hydrogen production from nuclear power plants...
I will get into the storage idea in a later blog.

Door Tweakers user Blokker_1999, vrijdag 27 februari 2015 10:36

Furthermore, people don't pay for a fuel only to see it evaporate, neither do people fuel just enough for the trips they will take that day/week but often fill it up and hope to go as long as possible on a full tank.

You don't want to wake up one day, head out for work, get in your car, try to start it only to find out that all your fuel is gone, even though you still had enough for the trip before you went on holiday.

Door Tweakers user -RetroX-, vrijdag 27 februari 2015 11:12

Can hydrogen be used as complementary energysource to gasoline?

I drive a lot autobahn at high speeds. My fuelconsumption doubles between 100 and 150 kmh. It would save me a lot of fuel if I could lower fuelconsumption on the higher speeds.

Door Tweakers user mux, vrijdag 27 februari 2015 11:32

-RetroX- schreef op vrijdag 27 februari 2015 @ 11:12:
Can hydrogen be used as complementary energysource to gasoline?

I drive a lot autobahn at high speeds. My fuelconsumption doubles between 100 and 150 kmh. It would save me a lot of fuel if I could lower fuelconsumption on the higher speeds.
Fuel consumption is a function of the power required for a car; you can't change physics. Driving at 150km/h necessarily requires about 220% of the energy (per distance) compared to driving at 100km/h.

Door Tweakers user -RetroX-, vrijdag 27 februari 2015 11:48

True. But the engine-design has great impact on consumption. Electrical engines are more efficient then fuel burning engines. Also systemens like turbo's can enhance engine performance. This is all outside the scope of the energy that is used to move the car.

But I lack all knowledge on how hydrogen could fit hybrid systems/engines.

Door Tweakers user H!GHGuY, vrijdag 27 februari 2015 13:04

I think the empty-gas-tank is a bit overexagerated. As gas escapes, the pressure lowers and the rate of escape also goes down. It's not a linear curve.
I can imagine that you can easily add a factor of 2-3 before pressure is too low for the car to start.
The downside to this is that you need really good thermal insulation as well as some way to keep refrigerating the hydrogen tank.
You could use some of the gas to generate electricity for both cooling and external use and also get the additional effect that lowering pressure cools down the gas a bit.

Door Tweakers user Jaaap, vrijdag 27 februari 2015 14:01

Great post!
Very minor error in the text:
So what's the downside? Well... obviously, it still outputs carbon monoxide. A lot of it, actually.
Should be dioxide?

Door Tweakers user mux, vrijdag 27 februari 2015 14:38

-RetroX- schreef op vrijdag 27 februari 2015 @ 11:48:
True. But the engine-design has great impact on consumption. Electrical engines are more efficient then fuel burning engines. Also systemens like turbo's can enhance engine performance. This is all outside the scope of the energy that is used to move the car.

But I lack all knowledge on how hydrogen could fit hybrid systems/engines.
No, the specific case you are talking about is a strict power required-problem. Regardless of energy efficiency, going 150km/h will always consume about twice the energy of going 100km/h. Gasoline engines don't work appreciably less efficient at either working point, unless you have a vastly outsized or undersized engine.

That being said; yes, engines that work on other principles can be more efficient, but they will be more efficient on the whole. Not just at a specific operating range.
H!GHGuY schreef op vrijdag 27 februari 2015 @ 13:04:
I think the empty-gas-tank is a bit overexagerated. As gas escapes, the pressure lowers and the rate of escape also goes down. It's not a linear curve.
I can imagine that you can easily add a factor of 2-3 before pressure is too low for the car.
So it's still fine that the majority of the hydrogen you paid for just evaporates in the course of hours or a couple of days? This is an acceptable tradeoff for hydrogen fuel cell cars?
You could use some of the gas to generate electricity for both cooling and external use and also get the additional effect that lowering pressure cools down the gas a bit.
Of course, and this is usually what is done. However, this does reduce the total energy efficiency of the car even further. An FCV stored for long amounts of time with cryogenic storage would be an incredibly wasteful endeavor. What's the point? We already have better technology.
Jaaap schreef op vrijdag 27 februari 2015 @ 14:01:
Great post!
Very minor error in the text: (...)
Should be dioxide?
Totally right, it has been fixed.

Door Tweakers user Thedr, zaterdag 28 februari 2015 16:43

I really like your articles, I think they give a nice round up of the technological possibilities and issues about a hydrogen economy.
Did you consider discussing the topic of storing hydrogen as metal (hydrites) such as magnesium and lithium i.e.? There is currently (and have been in the past) a lot of research done in that area. Or is it already foreseen for a next update?

Oh and something else; I just saw my professor (Maarten Steinbuch) at TU/e twittered the links to your blogs; you might see a slight increase in visitors the next few hours ;)

[Reactie gewijzigd op zaterdag 28 februari 2015 16:44]


Door Tweakers user mux, zaterdag 28 februari 2015 18:00

I touch on metal hydride storage already in this blog post, but also mention that at least at the moment (and moment = the last 10 years already), this is not necessarily more efficient than compressed or liquified storage. A big issue with this technology is that while it has been demonstrated to work for quite a while now, zero improvements have been made even though a lot of research is seemingly going on (or at least, there are a lot of public statements toward this technology, I'm not actually following the scientific literature that closely). We're still at about the same fuel density (roughly 25-to-1 mass ratio of tank-to-fuel) as we were in 2003. If that essential performance metric sees no massive improvement, I don't see that technology catching on.

And: awesome that Maarten Steinbuch linked my blogs. I don't know him personally, but I've been at his chair a couple times back when I was looking for a place to do my master thesis. Good to see some interest from academia even though my articles are meant for the (technically inclined) public.

Door Tweakers user GemengdeDrop, zondag 1 maart 2015 16:42

Maybe for your computation of the hydrogen leakage you are mixing up cm^2/s and m^2/s?

a typical value of diffusion coefficient of hydrogen in steel D=10E-7 cm2/sec

The difference is only a factor of 10000 or so, which might explain why my 200Bar 10L H2 cyclinder that i have here in the lab has been happily storing hydrogen for more than 5 years (we don't use a lot). ;) . And i know it is steel because it has some minor amount of rust, but i can't tell which material is on the inside. Is is rather heavy, i can tell you that.

In addition, i'm missing a constant with unit area somewhere.

I'd say that the leakage is not the biggest issue. Although embrittlement is a serious thing, storing gas at 200 atmospheres is not a (big) problem. But when you try to go cryogenic you are in trouble. Also, considering the safety issues you typically have with using H2 cylinders (or any compressed gas cylinder really) in a lab, it is not hard to see that using gas at such pressures might have some issues with it.

So where is the leakage problem exactly? (i don't know). Is it related to LH2 only (in which case steel is a no-no)? Or maybe sealings and tubes and stuff?. Or is it the sheer weight of a vessel which could store enough H2?

Door Tweakers user mux, zondag 1 maart 2015 17:30

Ha, you are right. I have my units wrong; for ferritic steel the diffusion rate is 10-9 [m2/s] (which is what pipeline steel is made of), going to about 6x10-4 to 1x10-5 at high temperatures. So that's about 2 orders of magnitude off. I'll fix that in the text. See, this is why this isn't an actual scientific text :P it hasn't been properly peer reviewed. I was kind of working back from the numbers I have for the Linde gas containers and apparently made a mistake along the way.

The leakage problem is real; the container you have is most likely a steel outer tank (just to withstand the stresses) with a polymer/aluminum liner inside. This reduces leakage rates to about 10-7 at room temperature, which means you can store hydrogen at 200 bar for a reasonable amount of time. You will likely use so little that it's not that much of a problem. Also note that the leakage rate goes down as the pressure drops (as noted before in another comment); its more like an e-curve.

The only reason why I put the calculation there (which was off by a good 2 orders of magnitude; stupid me) was not to say that hydrogen tanks don't work, but to give some insight into the difficulty in containing hydrogen. For car tanks it's already a problem in that you need a 100-kg tank to hold 5kg of hydrogen. For distribution, the problem is much bigger if we want to reuse the natural gas infrastructure for hydrogen distribution. These pipelines can't be economically outfitted with low-leakage, embrittlement-fending liners. And we can't use pure austenitic (better leakage properties by an order of magnitude) steel either, that would again require pretty much a complete re-do of the infrastructure. As the pipelines exist right now, the leakage will be tremendous.

As for car tanks: leakage from the tank itself is also a big problem. I did my calculations with 200 bar. Nobody stores hydrogen at 200 bars in a car; that would mean you can only store a tiny amount (0.5-1kg) in a reasonably sized car frame. We need to be able to store 5-10kg for typical energy requirements in an FCEV, so for compressed hydrogen to work we need to go up to 700 bar. 700 bars, thinner walls to keep weight in check and you have a leaky tank.

Liquid H2 is a different issue altogether. Liquid H2 has the distinct advantage that its diffusivity through a container is like 5 orders of magnitude less (lower temp, lower pressure), but has the problem that as it heats up it will boil off and cause an increase in pressure. The phase diagram for hydrogen is relatively unfavourable because at or near room temperature, it will not stably exist as liquid so it will always eventually boil. Most other fuel types are easily liquefied at reasonable pressures, but hydrogen needs continuous refrigeration. Either that, or metallic hydrogen storage needs to be a thing (carbon nanotube containers?)

http://hydropole.ch/wp-co.../1372142909_phasediag.gif

[Reactie gewijzigd op zondag 1 maart 2015 17:32]


Door Tweakers user etwintje, zondag 1 maart 2015 18:35

Great article, very interesting. I like the way you make this difficult matter understandable, kudos for you. I found another short article with some graphs, consistent with your opinion: http://tonyseba.com/toyot...e-with-electric-vehicles/

Door Tweakers user mux, zondag 1 maart 2015 18:38

Although I generally agree with Tony Seba, do keep in mind that he's pretty aggressively trying to get you to buy his book :P. Not saying that diminishes his opinion, but he comes from a different background.

Door Freekr, maandag 2 maart 2015 17:00

Hello Mux.

The trouble with most of these problems is that the nothing is as efficient as it could be. And alot of the problems have alot of dependencies(mostly expectatioins of consumers)
Volumetric storge vs range is for example also influenced alot by airodynamic efficiency of a car design. Witch can be easely reduced to 30%(cd*A) of current designs. That would potentionally reduce the longterm power output needed of the fuelstack or higher topspeeds. And reduce significantly the size of the fuel tank( or the possibility for lower pressure storage).

I know this is only specific on fuel tanksize / leakage, but still.

What is your vision on this?

And maybe you can also review inovative technical solutions?

I have heard something about membrame hydrogen compression witch doesn't compress adiabaticly. witch sounds difficult to do :D

I am also not favorable towards hydrogen.

Door freekr, maandag 2 maart 2015 17:02

Oops. I forgot to do a spellcheck. :D

Door Tweakers user mux, maandag 2 maart 2015 18:30

Freekr schreef op maandag 02 maart 2015 @ 17:00:
Hello Mux.

The trouble with most of these problems is that the nothing is as efficient as it could be. And alot of the problems have alot of dependencies(mostly expectatioins of consumers)
Absolutely, a lot of calculations here are either best case theoretical or laboratory efficiencies; in the real world things are a couple tens of percents worse still. However, that's not actually my complaint. My complaint with regards to well-to-wheel efficiency is the fact that it's inherently an inefficient process, regardless of which technology you use for generation, transportation, storage and utilization of hydrogen as an energy carrier.
And maybe you can also review inovative technical solutions?

I have heard something about membrame hydrogen compression witch doesn't compress adiabaticly. witch sounds difficult to do :D
It doesn't matter whether you're compressing adiabatically or some other way; every compression-decompression cycle has inherent losses, which are significant for any practical gaseous hydrogen storage solution. The equation of state doesn't actually change from start to finish! The fact that I chose adiabatic compression for my example calculations is just a mathematical convenience (because the EoS is so simple to calculate). Also, I won't comment on nascent/far-off technological solutions in these first blogs, I'm saving that for the last part.
I am also not favorable towards hydrogen.
The fun thing is; I'm not unfavourable towards hydrogen or HFCs, or even fuel cells in general. I like the technology, I like all technology in general. This is what I do. I'm an engineer.

But with some background knowledge, even the simplest back of the envelope calculations about HFCs just don't make any practical sense. It's stupid to think this will ever replace our car fleet. What I'm trying to do in this blog series is explain, with the math and knowledge we all have at our disposal, why this is.

If we all try really hard, HFCVs may someday be roughly on par in energy efficiency, weight and safety to current gasoline powered cars. Whoopdedoo. BEVs are, right now, five times better already. How the hell can you compete with that?

[Reactie gewijzigd op maandag 2 maart 2015 18:30]


Door Tweakers user KC Boutiette, dinsdag 10 maart 2015 13:51

By the way, steam reforming water into hydrogen would technically probably be pyrolysis? Not sure about that one. Maybe someone in the comments can help me out with that one.
I am not sure about the English terminology (I cannot find a proper link) but in Dutch this is called thermische hydrolyse (http://www.wikimobi.nl/wi...itle=Thermische_hydrolyse) or hydrolyse in short (and again in Dutch ;) ).
I work as an operator in a cyclotron in Eindhoven where we radiate water to gain fluor isotopes used to diagnose cancer and other diseases. Hydrolysis of water and the resulting high pressure is a problem in our targets at high radiation intensities.

edit:
Oh, found a better link (http://en.wikipedia.org/wiki/Water_splitting). I believe you mean 'thermal decomposition of water' (thermolyse in Dutch). The problem we have with our targets is called radiolysis.

[Reactie gewijzigd op dinsdag 10 maart 2015 14:02]


Door Tweakers user mux, dinsdag 10 maart 2015 15:11

Thermal hydrolysis is apparently a thing, it's a subclass of thermolysis (http://en.wikipedia.org/wiki/Thermal_decomposition).

So yeah, let's just call it... thermolysis?

Door Tweakers user Dreamvoid, dinsdag 10 maart 2015 17:05

I've been in the energy business for a long while and I find that many, many smart people (inside and outside of it) are genuinely interested about better ways to do things, and all roughly follow the same path of critical thinking. First they focus their efforts cataloguing all the bad aspects of the current fuels, then open up to every crackpot alternative idea, and then use their intellect to investigate those one by one, and try to figure out which one of those alternatives are actually viable.

The interesting thing is that in the journey for clean fuels (i.e. clean at the exhaust, not clean as in the full energy cycle, that a whole 'nother thing), people invariably initially pin their hopes on those elegant, clean burning, light molecules (H2 and CH4 mainly), but then bump into the manufacturing problem, as well as the storage problem, and end up instead paining their brains for....for a fuel that's nicely liquid at atmospheric temperature and pressure...thereby re-discovering those same heavy molecules that they've been denouncing for years.

The second phase in that line of thinking brings you looking more towards sustainably generated alcohols/ethanols, biodiesels etc which can be a CO2-neutral cycle, can be sustainably generated (albeit not in large enough quantities to replace fossil oil today), but do not do away with the pesky problem of incomplete burn, i.e. unwanted exhaust fumes.

(all this obv focuses on fuels, not on EV's which use a completely different method to compress energy densely - batteries).

[Reactie gewijzigd op dinsdag 10 maart 2015 17:16]


Door Tweakers user mux, dinsdag 10 maart 2015 19:32

I completely recognize what you're saying there; I've been floating around in the energy business for long enough to have seen at least one such cycle. One the one hand it's a little bit depressing to see people go through a process of discovery and disillusionment, but on the other hand I feel it's necessary.

Things that absolutely didn't work 5 years ago are now completely mainstream. We need a constant influx of ignorant, idealist engineers to keep trying to push boundaries in all fields of sustainability. Some things are fundamentally broken, sure, but others can be fixed by just throwing more bright minds at them.

Door Tweakers user Antique, maandag 16 maart 2015 23:47

This is roughly how you do these calculations. In practice, the reason for the much lower than theoretically possible efficiency of steam reforming is the fact that this is actually a two-step process. A lot of energy is lost in the carbon monoxide reaction, reducing the theoretical maximum to about 85%. I'll leave the math to this as an exercise to the reader.
So I've been trying to do that math, but something gets in the way: Hess's Law states that the total enthalphy change depends only on the initial and final states. So in enthalphy calculations it shouldn't matter that there is a CO step in between. That is actually true in general of anything that is a state function.

Sure reactions tend to become less efficient in practice with every additional step in between, but as far as I know that is not due to the thermodynamics. In your calculations I did not see any other factors discussed. So could you clarify how you got to that 85% and where exactly the energy is lost?

[Reactie gewijzigd op maandag 16 maart 2015 23:49]


Door Tweakers user mux, dinsdag 17 maart 2015 09:27

I was going to type this out but honestly it's a bit too long and I am a bit fuzzy on the details myself. The catch is that you're not actually working with Hess's law. The first, endothermic reaction (CH4 + H2O -> CO + 3 H2) occurs at a much higher temperature and under completely different circumstances than the second, exothermic reaction (CO + H2O -> CO2 + H2). In between these reactions is a heat exchanger which has the duty of both heating up liquid water to steam (at high temperature) and cooling down the hydrogen to very low temperatures (lower than any input flux). This is what limits practical efficiency considerably, as heat exchangers aren't perfectly efficient nor do they allow for heat exchanging outside their temperature envelopes (i.e. you need to use additional external energy).

The theoretical limit of 85% is based on lower heating value of the reaction product vs reaction input (keep in mind their phases!).

This is one of a couple of fairly easy to google documents going into detail on SMR. It goes through all the motions you need to know to get to a theoretical plant efficiency. Note that this document in figure 5 uses both higher heating value as well as a fairly high steam export temperature to come to its theoretical efficiency. At 22.2K and LHV, the efficiency is about 85%.

Door Tweakers user Antique, woensdag 18 maart 2015 22:09

Thanks for the additional information. The 85% apparently does not follow from a trivial calculation as your text suggested (or our definitions of trivial are quite different). Given enough time I will see if I can track where it comes from.

Door Tweakers user InflatableMouse, donderdag 9 april 2015 09:49

Hi Mux,

I'm not a scientist so forgive me if I am talking out of my behind :).

You say, and I quote:
In other words, per kilometer we produce 2.25 moles of CO2, or 99g. that is exactly the same as a compact petrol or diesel powered car. Environmentally, you win absolutely nothing with this approach. And this calculation is fairly positively biased; I'm ignoring most other sources of inefficiency in this chain, and I'm assuming a state of the art electrical drivetrain.

Also, methane is the best possible situation: methane contains 1 carbon atom for 4 hydrogen atoms. The less carbon, the better. Any other fuel contains relatively more carbon, and thus will yield worse CO2 emissions.
While this is true, aren't you forgetting the fact that Methane, when released in the atmosphere is a much more environmentally damaging greenhouse gas than CO2, by a factor 20, to be precise?

Methane in the earth's crust is currently one of the biggest environmental problems, with melting icecaps that currenty hold a lot of methane. When they melt, the methane is released into the atmosphere.

So my logic would be to take this into the equation. Harvesting this methane and using it to produce hydrogen would be less damaging overall, even though the carbon footprint is similar to gasoline or diesel, for the simple fact that the methane is kept from getting into the atmosphere itself.

What are your thoughts on this?

Door Tweakers user mux, donderdag 9 april 2015 11:31

That is a very tricky question to answer. There are three questions here, essentially:
- does using methane in a fuel cell or for hydrogen production release less primary methane in the atmosphere?
- is methane in the earth's crust harvestable for hydrogen production purposes?
- Is using methane for fuel cells better than directly for electricity by some other means?

First of all, we start with the second question: we're actually talking about two very different types of methane stores. The methane that is proposed to use for hydrogen production (and, in fact, is already being used on industrial scales) is a by-product of oil drilling. Natural gas naturally occurs in porous rocks surrounding oil fields. This is very different from hydrated methane stores in thermally sensitive ocean floor minerals, which are at a risk of releasing a bunch of methane gas due to global warming. This last type of methane is not really harvestable; the stores are quite dispersed, cannot be drilled and are fairly unstable.

Natural gas in oil fields is at almost no risk of spontaneous release. We are purposefully drilling into those bubbles. Actually, a lot of methane is 'accidentally' released into the atmosphere as a result of this, much more than (as far as we know) from natural sources. Oil drilling is a major cause of methane in the atmosphere!

So just judging by this logic, it would actually be quite a bit worse to increase natural gas demand for the purposes of producing hydrogen. It would have a knock-on effect of releasing more methane into the atmosphere, besides the carbon dioxide load.

But as always this is very far from the whole story. Oil is not something we want to abandon completely; it is one of the greatest cheap resources for plastics and overall a lot better even from an environmental perspective to use than a bunch of alternative resources like short-cycle plant carbohydrates. Natural gas is going to be produced in large quantities, and we should find a way to most efficiently use it. So what is better, using it for hydrogen production or using it for electricity production?

As it turns out, electricity will always win. You inherently lose a lot of chemical energy in the reforming process which is an inefficiency that is so large that you can't win from the thermodynamic efficiency of turbine generators. The end-difference isn't super-large, so it's viable (we accept large inefficiencies in vehicle design already, so who cares about a 10% difference). But again; looking at this from the perspective of 'which technology should we pursue for the future if we regard all choices equally' - fuel cells wouldn't have an advantage in this respect (well-to-wheel efficiency for a 100% methane input).

Direct methane or direct methanol fuel cells, which have autoreformers in them, are quite a bit worse if we're talking about exhaust gases. They don't just exhaust CO2 and water - they exhaust a tiny proportion of methane/methanol as well. If a large vehicle fleet were to use these fuel cells, even the very small amount of fuel that ends up unscrubbed in the exhaust gases is still a big problem.

So:
- Do fuel cells running from reformed methane-source hydrogen cause more primary methane release into the atmosphere? At best, no, but probably a bit more because of the knock-on demand for methane from harvestable sources
- Is methane from unstable sources harvestable? Nope.
- Is using methane for fuel cells in general a better idea? No and no. Can even be a lot worse if you use direct hydrocarbon fuel cells.

Door Tweakers user InflatableMouse, maandag 20 april 2015 10:43

Many thanks for your elaborate answer!

I've been forwarding your articles to friends and family, you have their gratitude as well!

Door Sjoerd, maandag 4 mei 2015 13:37

Goed verhaal waar ik heus lang niet alles van begrijp. Maar zijn de bottle necks niet hoogstwaarschijnlijk oplosbaar? Natuurlijk zijn de olie- en de auto industrie samen liever uit of waterstof dan op electriciteit, want op die laatste hebben ze te weinig grip, maar toch zullen Toyota, BMW, VW en Hyundai geen miljarden steken in iets waar ze helemaal niks in zien. Waterstof kan vrijwel overal uit gehaald worden en er zijn zoveel onderzoeken gaande naar alle fases van de 'waterstof-economie' at large. Zoals opslag (www.hydrexia.com) en methaanzuur (http://phys.org/news/2015...en-battery-stone-car.html).

Daarnaast heeft Toyota, naar voorbeeld van Tesla, alle IP voor serieuze belangstellenden openbaar gemaakt.

Met alle respect, ik denk dat ze daar wel het een en ander in hebben staan, dat je niet weet op basis van die -werkelijk fantastische- kart die je gebouwd hebt...

Overigens, heeft Toyota heel geestig gereageerd op Elon Musk die de Fuel Cell weer eens 'bullshit' heeft genoemd. Google op Toyota+bullshit...

De Mirai heeft overigens geen last van slechte throttle. Hoe ze dat doen, weet ik ook niet.

Door Sjoerd, maandag 4 mei 2015 13:49

Dreamvoid schreef op dinsdag 10 maart 2015 @ 17:05:

The second phase in that line of thinking brings you looking more towards sustainably generated alcohols/ethanols, biodiesels etc which can be a CO2-neutral cycle, can be sustainably generated (albeit not in large enough quantities to replace fossil oil today), but do not do away with the pesky problem of incomplete burn, i.e. unwanted exhaust fumes.
It is not a surprise, but nevertheless a sad thing that PSA (Peugeot-Citroen) has 'not been able to find a partner' to develop their HydridAIR technology...

Making hydrogen from corn starch is another possibility. So you could imagine a car running on electricity, with a battery and a fuel cell, supported by a tiny gasoline-with-isobutanol burning ICE...

Then, at least, you can re-energize at every possible station...

Door Tweakers user mux, maandag 4 mei 2015 14:03

Sjoerd schreef op maandag 04 mei 2015 @ 13:37:
Goed verhaal waar ik heus lang niet alles van begrijp. Maar zijn de bottle necks niet hoogstwaarschijnlijk oplosbaar?
Het doel van de blogserie is om in te gaan op de techniek erachter, en waarom de problemen zo groot zijn ;) Als er specifieke zaken niet duidelijk zijn leg ik ze met plezier uit, maar op de vraag 'maar is dit niet allemaal gewoon oplosbaar' kan ik geen kort antwoord geven :P Het antwoord is bij benadering 210kB lang.
Daarnaast heeft Toyota, naar voorbeeld van Tesla, alle IP voor serieuze belangstellenden openbaar gemaakt.

Met alle respect, ik denk dat ze daar wel het een en ander in hebben staan, dat je niet weet op basis van die -werkelijk fantastische- kart die je gebouwd hebt...
Toyota's IP is net als dat van Tesla niks technisch belangrijks; in de openbare literatuur wisten we alles al, al tientallen jaren. Het openstellen van IP is voornamelijk om koudwatervrees op te lossen: wat als we techniek X willen gebruiken om in de markt te stappen? Gaat merk Y ons dan aanklagen? Daarnaast is het goede PR.
Overigens, heeft Toyota heel geestig gereageerd op Elon Musk die de Fuel Cell weer eens 'bullshit' heeft genoemd. Google op Toyota+bullshit...

De Mirai heeft overigens geen last van slechte throttle. Hoe ze dat doen, weet ik ook niet.
De Mirai heeft een gigantische batterij ;) Daar doen ze throttle mee. Net als iedere andere waterstofauto, je komt er niet omheen om een flinke batterij en/of ultracondensator mee te slepen.

Door Tweakers user mux, maandag 4 mei 2015 14:09

Sjoerd schreef op maandag 04 mei 2015 @ 13:49:
It is not a surprise, but nevertheless a sad thing that PSA (Peugeot-Citroen) has 'not been able to find a partner' to develop their HydridAIR technology...

Making hydrogen from corn starch is another possibility. So you could imagine a car running on electricity, with a battery and a fuel cell, supported by a tiny gasoline-with-isobutanol burning ICE...

Then, at least, you can re-energize at every possible station...
HydridAIR, compAIR and the dozens of other compressed air vehicles (and compressed air-enhanced vehicles) are a complete dead end. Not only do they suffer from very sub-par cycle efficiency; there is no room for improvement in the future. The limit is already reached. And current performance, both instantaneous power development as well as range, is limited to about an order of magnitude less than electrochemical or chemical energy.

It's a great technology as a competitor for electric cars in cities and in industrial lots, where it's already being used quite widely. But it will never be able to be a general solution to transportation, it is simply not energy dense enough and doesn't scale well.

And why would you complicate a vehicle with an ICE, when there's perfectly fine batteries and/or self-reforming fuel cells available? You can already refuel your electric or autoreforming fuel cell car everywhere you want! The infrastructure is already there!

Door Tweakers user johncheese002, zondag 6 maart 2016 02:03

Great story, although I've heard not very long ago about research being done at TU/D to store hydrogen inside several kinds of metal, because of the fact that it was possible to put large amounts of hydrogen-atoms quite easily between the metal atoms in the well-known squared-atom-raster. For at least 70-76% hydrogen could be stored inside the testing materials, safely and easy to extract. That shapes a different kind of perception (in my opinion) of how we could use the available material of the car itself, to solve the 'storage' problem- like an airplane storing the fuel inside of its wings, while you expect a separate fuel-tank (metaphorically.)

I'm not defending hydrogen technology here, or the car-industry (or any brand!), but in the end we strongly depend on this kind of innovation and original thinking imo, to solve such practical problems or matters in the use of any kind of new car-technology.

At least to make it 'household', mainstream, ready for the mass-market etc.

[Reactie gewijzigd op zondag 6 maart 2016 04:04]


Door Tweakers user mux, zondag 6 maart 2016 09:38

I think what you're talking about is metal hydrides. These have already been in use for quite some time, but their gravimetric storage efficiency is pretty bad (compared to compressed gas in composite cylinders) and the refueling time is significantly longer.

Also, your assumption of storing hydrogen in otherwise structural parts of the car is right out. Yes, hydrogen can be packed fairly efficiently into specifically austenitic steel, but this has the profound impact of causing brittleness and strongly reduced ultimate material strength. You're not saving any weight or complexity by doing this. You really need a dedicated fuel tank.

This blog series is not about saying fuel cells are all bad; they're nifty and interesting and in some ways they are a fundamental optimization point for electrochemical cells. What I'm saying is that there is just no way around the fact that hydrogen fuel cells are simply never going to be feasible for consumer cars. You will fundamentally never achieve nearly the same efficiency as with batteries - including production cost - and you will fundamentally always have a much more complex and thus more expensive/less reliable drivetrain. We can already calculate right now that in the far future, batteries (which are ultimately a kind of reversible fuel cell) are always going to outperform fuel cells.

Adding to this is all the pretty big hurdles we have with current tech. There is no breakthrough on the horizon that will improve fuel cells sufficiently before battery electric cars will outcompete them.

I'm not against innovation, and there are good reasons to use fuel cells in limited circumstances. There are also potential, longer-term technical solutions to some of the problems. The efficiency will never be good, that's the only unbreakable law. But the catalysts will someday not have to be platinum (or hell, we can mine asteroids for plentiful supply), the throttling problem will someday be fixed, the storage problem can be fixed by not using PEM fuel cells. Even the pollution problem can someday be fixed with pure biofuels or otherwise fully synthetic fuels. However, even with decades of research and development we have gotten nowhere on any of these problems so far. There is no reason to believe we're going to fix this in the next 1-5 years, which is how fast it has to go to even get a chance to compete with batteries.
